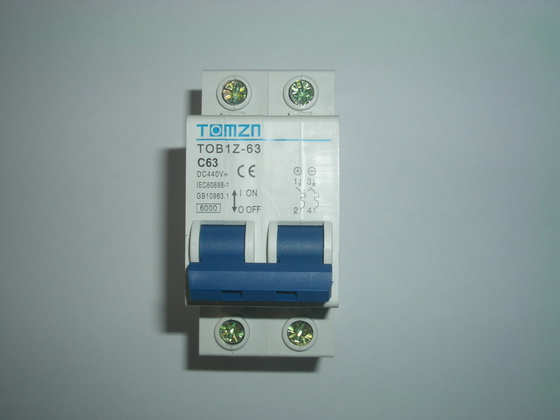

Specification

Brand Name : TOMZN

Poles Number : 2

Type : Mini

Model Number : TOB1Z-63

Standard : IEC60947, IEC60898

Rated current : DC 63A

Mounting : 35mm din rail

Breaking Capacity : 10KA

Charcteristic Curve : B,C,D Type

Rated Voltage : DC 440V

Rated limit short circuit capability :
Breaking current Icu(A) : 6000
Time (ms) : 10



Charcteristic Curve

B Curve (3-5In) : protection for people and big length cables in TN and IT systems

C Curve (5-10In) : protection for resistive and inductive loads with low inrush current.

D Curve (10-14In) : protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps)
